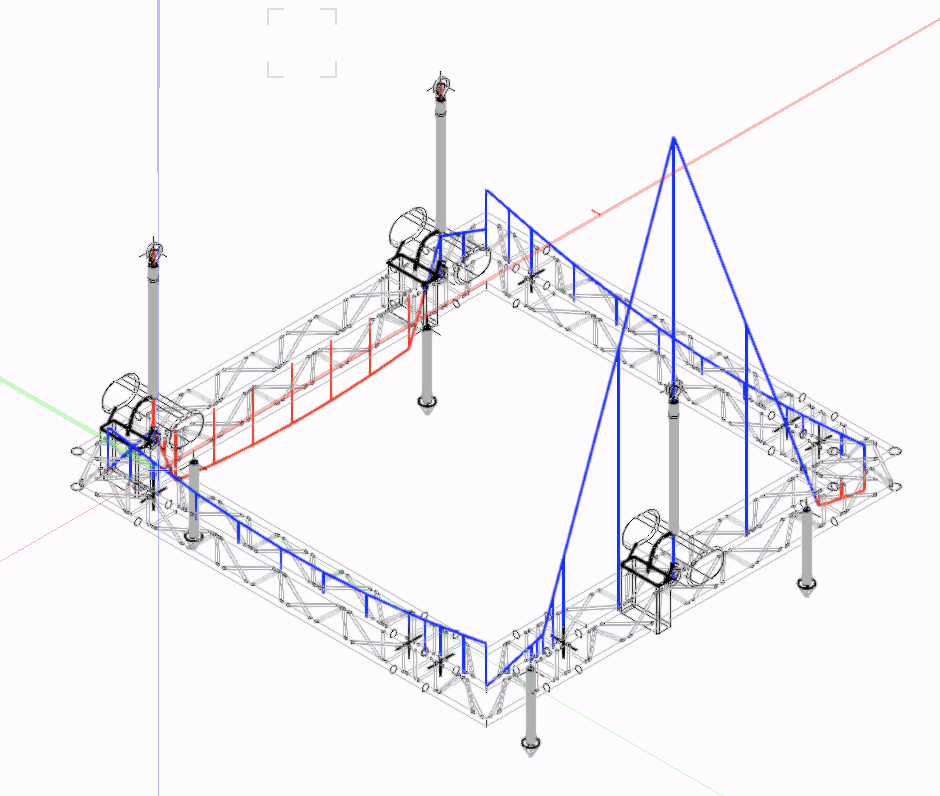

This oject is the result object of the calculations. The results are displayed graphically.
The analysis object is only valid if a calculation was previously performed. Old analysis objects are deleted when a new calculation is performed.
¶ Informationen - Object
¶ Result
Select which data is to be displayed graphically:
| Selection | Description |
|---|---|
| Normal Force (N) | Draws the curve of the normal force in the beams |
| Shear Force (Vy) | Draws the course of the shear force (Vy, usually horizontal) in the beams |
| Shear Force (Vz) | Draws the course of the shear force (Vz, usually vertical) in the beams |
| Torsion (Mx) | Draws the course of the torsion in the beams |
| Bending Moment (My) | Draws the course of the bending moment (My, usually vertical) in the beams |
| Bending Moment (Mz) | Draws the course of the bending moment (Mz, usually horizontal) in the beams |
| Support static | Write the support forces to the supports. All factors are 1.0. |
| Support dynamic | Writes the support forces including the lifting factor to the supports. |
| Verifications | Displays the utilisation of the components with simple coloured markings. |
¶ Result Set
Shows the shortcute of the load combination used.
¶ Minimum
Displays the minimum value of the current results.
¶ Maximum
Displays the maximum value of the current results.
